When you need to make an M5 threaded hole, choosing the right drill bit size is critical. Using the wrong size can ruin your project—either the tap will not cut properly, or the threads will be weak and unreliable. This is a common challenge for both beginners and experienced DIYers, as metric taps and drill bits can be confusing if you do not know the exact match. Knowing the correct drill bit size for an M5 tap will save you time, prevent broken taps, and ensure strong, long-lasting threads. In this guide, you’ll find everything you need to know, from the basic answer to advanced details like thread pitch, tap types, material differences, and key tips that most guides overlook.
Whether you are working on metal, plastic, or wood, understanding the full context will help you avoid costly mistakes. We’ll break down the five main things you must know about drill bits for M5 taps, provide real-world examples, and answer common questions to make sure you feel confident the next time you need to tap an M5 hole.
What Is An M5 Tap?
Before you pick a drill bit, it’s important to understand what an M5 tap is. In the metric system, the “M” stands for metric, and the number that follows (in this case, 5) represents the outer diameter of the thread in millimeters. So, an M5 tap is used to cut threads for a 5 mm metric screw.
Taps create the internal threads that allow a bolt or screw to fit tightly inside a hole. Using an M5 tap, you can make a threaded hole that fits an M5 bolt perfectly. There are different types of taps, but the sizing principle remains the same for all standard metric taps.
But to use a tap, the hole you drill first (the “tap drill hole”) must be slightly smaller than the final thread size. The tap then cuts the thread profile into the material.
The Standard Drill Bit Size For M5 Tap
The most direct answer: The recommended drill bit size for an M5 tap is 4.2 mm.
This is based on standard thread pitch for M5, which is 0.8 mm. The drill bit size ensures enough material for the tap to cut clean threads, but not so much that the tap is overworked or the threads are weak.
Here’s a quick reference:
| Tap Size | Standard Pitch (mm) | Recommended Drill Bit (mm) |
|---|---|---|
| M5 | 0.8 | 4.2 |
Using a 4. 2 mm drill bit will give you the best balance of ease and strength for general applications. This is the answer you’ll find in most metric tap drill charts and is correct for almost all common M5 tapping jobs.
Why Drill Bit Size Matters For M5 Taps
Many beginners think a small difference in drill bit size won’t matter. But with an M5 tap, even a 0. 1 mm mistake can cause problems. If the hole is too small, the tap can break (especially in hard metals).
If the hole is too large, the threads will not be strong and may strip easily.
Let’s see what happens with different drill sizes:
- Too Small (e.g., 4.0 mm): The tap must remove more material. This increases torque and can snap the tap, especially in steel.
- Too Large (e.g., 4.5 mm): The tap removes less material, but the threads become shallow and weak. The bolt may not grip well.
Using the correct 4.2 mm size ensures you get threads that are strong enough for most M5 screws and materials, without risking tool breakage.
The Five Key Items About Drill Bit Size For M5 Tap
Knowing the standard size is just the start. There are five essential topics you need to understand to make the best choice for your project:
- Standard M5 Tap Drill Bit Size (Metric and Inch)
- Thread Pitch Variations (Fine vs. Coarse)
- Material Considerations (Metal, Plastic, Wood)
- Tap Types and Their Impact on Drill Bit Choice
- Common Mistakes and Pro Tips for Tapping M5 Holes
Each point is important and deserves a closer look.
1. Standard M5 Tap Drill Bit Size (metric And Inch)
The most common M5 thread is M5 x 0.8. For this, the standard drill size is 4.2 mm.
But sometimes, you may only have drill bits measured in inches, especially in the US. In that case, the closest fractional drill bit size is 11/64 inch (about 4.37 mm). This is slightly larger than 4.2 mm, but it works for most general uses, especially in softer materials.
Here’s a helpful comparison:
| Drill Bit Size | Millimeters (mm) | Inches (fractional) |
|---|---|---|
| Standard | 4.2 | 0.165 |
| Closest Inch Size | 4.37 | 11/64 |
If you have both metric and inch drill bits, always pick the 4.2 mm for best results. But if you must use an inch drill, 11/64″ is acceptable for most projects.
2. Thread Pitch Variations (fine Vs. Coarse)
Most M5 taps you’ll encounter have a standard pitch of 0.8 mm. But occasionally, you may see fine thread versions, such as M5 x 0.5. Fine threads are used for special applications where a tighter fit is needed or the material is thin.
For M5 x 0.5 (fine thread), the recommended drill bit size is 4.5 mm.
Here’s how the pitch changes the required drill size:
| Thread Type | Thread Pitch (mm) | Drill Bit Size (mm) |
|---|---|---|
| Standard (Coarse) | 0.8 | 4.2 |
| Fine | 0.5 | 4.5 |
It’s easy to overlook this difference. Always check your tap—if it says M5 x 0.5, reach for a 4.5 mm drill bit. Using the wrong size can lead to poor threads or tool damage.
3. Material Considerations (metal, Plastic, Wood)
The material you are tapping makes a difference in the drill bit size you should use. This is a detail many guides miss, but it matters for thread strength and tap life.
- Soft Materials (Plastic, Softwood): You can sometimes use a slightly smaller drill bit (like 4.1 mm for standard M5) to get deeper threads. The tap will cut easily, and the threads will be strong.
- Hard Materials (Steel, Stainless Steel): Use the standard 4.2 mm or even a tiny bit larger (4.25 mm) to reduce tap stress. Hard materials can snap taps easily if the hole is too small.
- Aluminum: Somewhere in between—4.2 mm works well, but make sure to use cutting oil.
Example: If you are tapping a hole in soft PVC plastic, using a 4.1 mm drill bit can give you stronger threads. But in stainless steel, always use 4.2 mm or 4.25 mm to avoid breaking your tap.
This adjustment is small, but it can make a big difference in how easily you create threads and how long your tools last.
4. Tap Types And Their Impact On Drill Bit Choice
There are several types of taps, and each works a bit differently:
- Hand Tap: Most common. Used with a T-handle or tap wrench. Works well with standard 4.2 mm drill bits.
- Spiral Point Tap (Gun Tap): Designed for machine tapping, pushes chips forward. Needs accurate hole size—4.2 mm is best.
- Spiral Flute Tap: Good for blind holes (holes that don’t go all the way through). Sometimes, using a slightly larger drill bit (like 4.25 mm) helps clear chips.
- Form Tap (Roll Tap): Does not cut threads but forms them by pushing material. Needs a slightly larger drill bit, usually 4.4 mm for M5. This is a detail many miss—using a cutting tap drill size with a form tap will make it very hard to tap.
If you are not sure which tap you have, it’s probably a standard hand tap. But check the packaging or marking on the tap. For form taps, always use the recommended larger drill bit, or you risk breaking the tap.
5. Common Mistakes And Pro Tips For Tapping M5 Holes
Even with the right drill bit, tapping can go wrong if you make simple mistakes. Here are some of the most frequent errors and expert tips to get perfect threads every time:
Mistakes:
- Forgetting to Use Lubricant: Especially in metal, always use cutting oil. This reduces friction and prevents tap breakage.
- Not Drilling Deep Enough: The hole should be deeper than the length of the screw, plus a little extra for the tap’s tip.
- Starting the Tap Crooked: A misaligned tap makes poor threads. Start slowly and keep the tap perpendicular to the surface.
- Using a Dull Drill Bit: A worn drill bit can make the hole undersized and rough, causing the tap to jam.
- Not Clearing Chips: Back out the tap every few turns to clear chips. If chips build up, they can jam the tap and break it.
Pro Tips:
- Mark the Drill Depth: Use tape or a drill stop so you don’t drill too shallow or too deep.
- Test Fit with a Screw: After tapping, always check the fit with an M5 screw before moving on.
- Practice on Scrap First: Especially in tough materials, test your process on a spare piece.
- Go Slow: Rushing the tapping process increases the risk of mistakes.
- Use the Right Tap Wrench: A good tap wrench gives better control and reduces breakage.
Real-world Examples: Applications Of M5 Taps And Drill Bits
Understanding the theory is important, but real-world examples help you see why these details matter.
- Electronics Enclosures: Many electronic devices use M5 screws for mounting boards or covers. Using the right drill bit (4.2 mm) ensures the screw fits securely and the threads will not strip out, even after repeated use.
- Bicycle Repairs: M5 screws are common on bikes (for mounting racks, bottle cages, etc.). Aluminum bike frames are soft, so a 4.1 mm drill bit may give better thread grip, but always test first.
- Automotive Work: M5 bolts are used in cars for light brackets or panels. In steel, using the proper 4.2 mm drill bit and cutting oil helps prevent broken taps and failed threads.
The Science Behind Tap Drill Size Calculation
For those who want to know how the drill size is calculated, the basic formula is:
> Drill Size = Tap Size – Thread Pitch
For M5 x 0.8:
- Tap size = 5 mm
- Thread pitch = 0.8 mm
- Drill size = 5 mm – 0.8 mm = 4.2 mm
This works for most metric threads. For fine threads, just use the correct pitch value. This formula gives a good balance between thread strength and ease of tapping.
How Drill Bit Quality Impacts Threading
Many people focus only on the size, but drill bit quality is just as important. A cheap or dull drill bit can:
- Make a rough hole that damages taps
- Drill slightly undersized or oversized holes
- Overheat and damage the workpiece
For tapping M5 holes, choose high-speed steel (HSS) bits for metal, or carbide for extra-hard materials. Make sure the bit is sharp and in good condition.
A high-quality drill bit makes a cleaner hole, which results in smoother, more accurate threads.
Tips For Buying Drill Bits And Taps For M5 Threads
When shopping for tools, you’ll see a huge range of options. Here’s what matters:
- Material: HSS for most work; carbide for hard metals.
- Coating: Titanium-coated bits last longer in tough materials.
- Accuracy: Look for drill bits with tight manufacturing tolerances.
- Tap Material: Carbon steel taps are fine for soft metals. HSS taps are better for steel and stainless steel.
Avoid cheap “no-brand” tap and drill sets, as they often have poor sizing and short lifespans. Buy from reputable brands or suppliers.
Credit: drillsandcutters.com
What To Do If You Don’t Have A 4.2 Mm Drill Bit
Sometimes, you may not have the exact 4.2 mm drill bit on hand. Here are your options:
- Use 11/64 inch (4.37 mm): Acceptable for general use, especially in softer materials.
- Go Down to 4.0 mm: Only for soft plastics or wood, not recommended for metal.
- Go Up to 4.3 mm: Threads will be slightly weaker, but this may be better than forcing a tap in hard metal.
Always test the fit on scrap material first. If the thread feels too loose, do not use it for high-strength applications.
Thread Engagement: How Deep Should The Thread Be?
Thread engagement means how much of the screw’s threads are gripping the material. For most M5 applications, full thread engagement (about 5 times the thread pitch) is ideal. This means:
- For 0.8 mm pitch, aim for at least 4 mm of thread engagement in the material.
Too little engagement, and the threads may strip. Too much, and you waste time and risk breaking the tap.
Credit: www.amazon.sa
Advanced: Using Tapping Charts And Resources

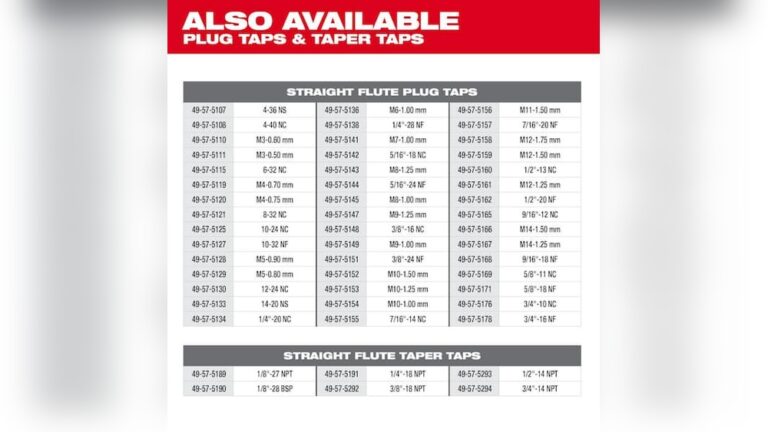

If you work with many different sizes, a tap drill chart is a great investment. These charts list the correct drill size for each tap, both metric and inch.
One reliable online resource is the Wikipedia Tap and Die page, which covers the basics and provides useful reference tables for many thread sizes.
Frequently Asked Questions
What Is The Correct Drill Bit Size For An M5 Tap?
For a standard M5 tap (M5 x 0.8), you should use a 4.2 mm drill bit. This creates the right hole size for strong, reliable threads.
Can I Use A 4.0 Mm Drill Bit For An M5 Tap?
Using a 4.0 mm drill bit is not recommended for metal, as the hole will be too small and can break the tap. It might work in soft materials like plastic, but always test first.
What If I Only Have Inch Drill Bits?
The closest inch drill bit size is 11/64 inch (4.37 mm). This is slightly larger than 4.2 mm but is usually acceptable for general use, especially in soft or medium materials.
Does The Drill Bit Size Change For Fine Thread M5 Taps?
Yes. For M5 x 0.5 (fine thread), use a 4.5 mm drill bit. Always match the drill bit to the tap’s pitch.
How Do I Avoid Breaking My Tap?
To avoid breaking your tap, use the correct drill bit size, apply cutting oil, drill deep enough, start the tap straight, and back out the tap to clear chips regularly.
Choosing the right drill bit for an M5 tap is simple once you know the details—but those details matter. Remember, for most jobs, 4.2 mm is the answer, but always check your tap’s pitch, match your drill size to the material and tap type, and use good tapping technique. Taking the time to get it right gives you strong threads and fewer problems, whether you’re a beginner or a pro. With these tips and data, you’re ready to tackle any M5 tapping job with confidence.
